DKX2-132 Raritan ( Dominion KX II ) 1 IP user, 1 Local user Digital KVM 1x32 port KVM switch with access over IP ( Raritan Dominion KX2 Range )
Description:
The Raritan Dominion KX II is an enterprise-class, secure, KVM-over-IP KXII switch that provides remote BIOS-level control of up to 64 servers. It raises the bar in KVM-over-IP technology with standard features such as Virtual Media and dual power – available on all models – that maximize performance, security, reliability and versatility.
Raritan's Universal Virtual Media lets administrators perform tasks such as installing software, transferring files and backing up data. A user can mount drives and media from the user's desktop to servers in the data center during a KVM session.
Our Virtual KVM Desktop™ allows users to scale a target server's display to any size, from thumbnails to full screen video. Transparent keyboard handling sends virtually every keystroke combination straight to the server, for a user experience that's nearly indistinguishable from an at- he-rack connection. Plus, it provides an intuitive user experience – whether the target servers are being accessed locally or remotely – through a common browser-based user interface. This interface supports the industry's widest range of operating systems and browsers.
The Raritan Dominion KX II also features Absolute Mouse Synchronization™, which reduces installation time and sets a new standard for mouse synchronization. Combined with high-quality, 1600 x 1200 video resolution, Virtual KVM Desktop and Virtual Media features, it provides the industry's most flexible and responsive remote user experience available. And with dual power supplies and dual gigabit Ethernet ports, both with automatic failover, the Dominion KX II is the most reliable digital KVM switch in the industry.
Architecture
The Raritan Dominion KX II consists of the KVM-over-IP switch and Computer Interface
Modules (CIMs).
�� Each CIM connects to the server's KVM ports and converts video signals for
transmission of up to 45 meters over UTP (Cat5/5e/6) cabling. CIMs also provide keep-alive keyboard/mouse emulation.
�� Dominion KX II offers KVM-over-IP capabilities for remote access, plus simultaneous local access for controlling servers at the rack.
�� Remote users easily access Dominion KX II from Windows®, Linux®, Sun® or Mac® desktops via a wide range of Web browsers or standalone client via modem. Raritan's remote client software is automatically downloaded via Web browser; standalone versions of client software can be pre-installed for modem access.
�� Dominion KX II provides its entire feature set out of the box: Virtual Media, AES encryption, dual power supplies and dual gigabit Ethernet ports with failover, SNMP, Syslog, as well as integration with LDAP, Radius and Active Directory® authentication.
Lowers costs, increases productivity while reducing mean-time-to-repair
�� Reduces expensive downtime by providing out-of-band access in emergencies
�� Virtual Media gives users virtual access to storage media and enables them to exchange information between remote users and target servers – through the KVM connection – via the server's USB port
�� Minimizes expensive and inconvenient travel to remote locations
�� Common Web browser interface for remote and local access
�� Remotely controls power to servers with optional remote power strips
�� Operates with select Paragon and Dominion KX I CIMs
Secure
�� Secure Linux-based appliance
�� 128-bit SSL AES or RC4 encryption �� All data encrypted, including video transmissions and Virtual Media
�� Local or centralized authentication with LDAP, RADIUS or Active Directory support
�� Configurable user and group permissions for server access and control
�� Local and remote access logged and authenticated
�� Uses configurable TCP port to preserve strict firewall settings
�� Supports strong password protection
Easy to install and scale
�� Easy installation – plug-and-play appliance, up and running in minutes
�� One Dominion KX II device manages an entire rack or row of servers
�� Hot-swap functionality allows users to add, relocate and swap components without disruption as your data center grows
�� Deploy individually or integrate with any of Raritan's enterprise-wide data center solutions, using CommandCenter® Secure Gateway (CC-SG)

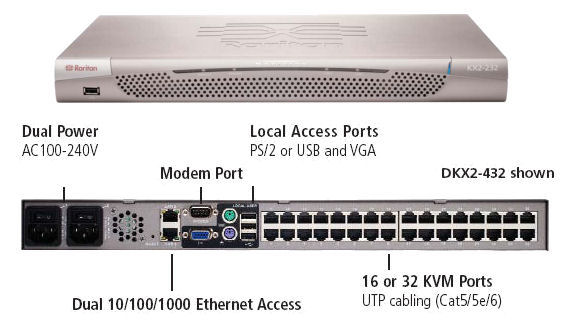

Raritan General KX2 Front and Rear Example Picture, Please not this may not be the actual size model listed.
Features:
Features
�� One, two or four remote KVM-over-IP channels
�� Highest port density in the industry – models available with 1, 8, 16, 32 and 64 ports
�� Dual power supplies with failover
�� Dual gigabit Ethernet ports with failover
�� Browser-based local user port for at-the-rack access
�� SNMP management and syslog logging
�� Plug-and-play installation
�� Platform Independent - CIMs available for PS/2®, USB, USB with Virtual Media, Sun® and Sun USB
�� External modem for emergency access
�� Flash firmware upgrades
Universal Virtual Media
�� Standard on all Dominion KX II models
�� Works standalone or with CC-SG
�� Exchange installation files and other media between a target server and a remote user over KVM ports
�� Works across conforming USB enabled operating systems
�� Includes DVD/CD-ROMs, USB storage devices and others
Highest quality KVM-over-IP
�� Award-winning KVM-over-IP technology
�� Fastest, tightest mouse synchronization in the industry
�� Intuitive Graphical User Interface (GUI)
�� High quality video with low bandwidth utilization
�� High (15-bit) color palette support
�� Adaptive video settings for different bandwidth situations, including modem access
Virtual KVM DesktopTM
�� Integrated, browser-based access and control
�� Universal KVM Client™ supports Windows, Linux, Sun and Mac clients
�� Multibrowser access for Internet Explorer, Firefox and Mozilla™
�� Full screen video display
�� Transparent keyboard handler
�� Flexible video scaling

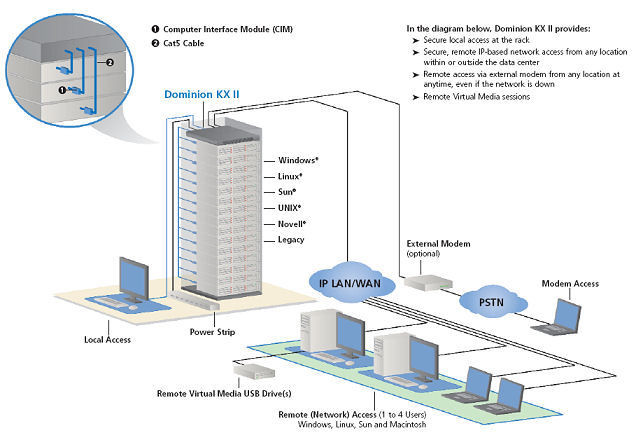

Raritan KX2 typical Setup
Specification:
Dimensions:
17.3" (W) x 11.4" (D) x 1.75 " (H)
439mm (W) x 290mm (D) x 44mm (H)
Weight: 9.0lbs / (4.1 kg)
Power: Dual Power 100V/240V 50/60Hz 0.6A
Form Factor:1U, full width, rack mountable (brackets included)
Operating Temperature: 32° (0°C) to 104° (40°C)
Remote Connection
Network: Dual Failover 10/100/1000 gigabit Ethernet (RJ45)
Modem Port: DB9(F) DTE
Protocols: TCP/IP, HTTP, HTTPS, SNMP, UDP, RADIUS, LDAP, SNTP, DHCP, PAP, CHAP
Local Access Port
Video: HD15(F) VGA
Keyboard/Mouse: Mini-DIN6 (F) PS/2 and USB (F), 1 USB front, 3 USB rear
Sample Video Resolutions
PC text mode: 640x350, 640x480, 720x400
PC graphic modes: 640x480, 800x600, 1024x768, 1152x864, 1280x1024, 1600x1200
Sun video modes: 1024x768, 1152x864, 1152x900, 1280x1024
Computer Interface Modules (CIMs):
D2CIM-VUSB (USB CIM for Virtual Media, Absolute Mouse Synchronization)
1.3 (W) x 3.0 (D) x 0.6 (H); 32mm (W) x 76mm (D) x 15mm (H)
Weight: 0.20 lb/0.09 kg
